Specifications

PRICING

Price	Standard
Price - Warranty (Months)	6
Price - Warranty (Condition)	Limited

ENGINE

Engine	Standard
Engine - Engine Type	Single-Cylinder
Engine - Cylinders	1
Engine - Engine Stroke	4-Stroke
Engine - Cooling	Liquid / Air
Engine - Valves	4
Engine - Valves Per Cylinder	4
Engine - Valve Configuration	SOHC
Engine - Bore (mm)	92
Engine - Bore (in)	3.63
Engine - Stroke (mm)	84
Engine - Stroke (in)	3.31
Engine - Displacement (cc)	558
Engine - Displacement (ci)	34.1
Engine - Compression Ratio	9.3:1
Engine - Starter	Electric
Engine - Fuel Requirements	Regular
Engine - Fuel Type	Gas
Carburetion	Standard
Carburetion - Carburetion Brand	Mikuni
Carburetion - Fuel Injector	Yes
Carburetion - Fuel Injector Size (mm)	40
Carburetion - Carburetor	No
Carburetion - Carburetion Type	Fuel Injected
Parental Controls - Speed Governor	No

TRANSMISSION

Transmission	Standard
Transmission - Transmission Type	Continuously Variable (CVT)
Transmission - Primary Drive (Rear Wheel)	Shaft
Transmission - Primary Drive (Engine / Transmission)	Belt
Transmission - Reverse	Yes
Transmission - Transmission Brand	UltraMatic™
Transmission - Hi / Low Range	Yes
Transmission - Primary Drive (Front Wheel)	Shaft

TECHNICAL SPECIFICATIONS

Dimensions	Standard
Dimensions - Length (in)	81.3
Dimensions - Length (mm)	2065.02
Dimensions - Width (in)	46.5
Dimensions - Width (mm)	1181.1
Dimensions - Height (in)	48.8
Dimensions - Height (mm)	1239.52
Dimensions - Wheelbase (in)	49.2
Dimensions - Wheelbase (mm)	1249.68
Dimensions - Turning Radius (ft)	10.5
Dimensions - Ground Clearance (in)	11.8
Dimensions - Ground Clearance (mm)	299.7
Dimensions - Length (ft)	6.78
Dimensions - Length (ft/ft)	6
Dimensions - Length (ft/in)	9.3
Weight	Standard
Weight - Wet Weight (lbs)	648
Weight - Wet Weight (kg)	293.9
Weight - Towing Capacity (lbs)	1322
Weight - Towing Capacity (kgs)	599.7
Capacities	Standard
Capacities - Fuel Capacity (gal)	5.3
Capacities - Fuel Capacity (l)	20.1
Performance	Standard
Performance - Engine Displacement to Weight (cc)	0.93

EXTERIOR

Construction	Standard
Construction - Frame	Steel
Construction - Body Material	Plastic
Floor Boards	Standard
Floor Boards - Floor Board Location	Driver
Hand Grips	Standard
Foot Pegs	Standard
Foot Pegs - Foot Peg Location	Driver
Foot Pegs - Adjustable	No
Exterior Guards	Standard
Exterior Guards - Brush Guard	Yes
Exterior Guards - Radiator Guard	No
Exterior Covers	Standard
Exterior Covers - CV Boot Cover	Yes
Exterior Covers - Shock Cover	No
Front Fender	Standard
Rear Fender	Standard
Handlebars	Standard
Front Bumper	Standard
Skid Plate	Standard
Skid Plate - Bash Plate (Front)	Yes
Skid Plate - Bash Plate (Rear)	Yes
Skid Plate - Swing Arm Skid Plate	No
Skid Plate - Full Length Skid Plate	Yes

SUSPENSION

Front Suspension	Standard
Front Suspension - Front Suspension Type	Independent Double Wishbone
Front Suspension - Front Travel (in)	7.1
Front Suspension - Front Travel (mm)	180.3
Front Suspension - Front Adjustable Fork Pre-Load	Yes
Front Suspension - Front Adjustable Rebound Damping	No
Front Suspension - Front Central Suspension Strut	No
Front Suspension - Steering Damper	No
Front Suspension - Front Stabilizer Bar	No
Rear Suspension	Standard
Rear Suspension - Rear Suspension Type	Independent Double Wishbone
Rear Suspension - Rear Travel (in)	9.5
Rear Suspension - Rear Travel (mm)	241.3
Rear Suspension - Rear Adjustable Shock / Spring Pre-Load	Yes
Rear Suspension - Rear Adjustable Rebound Damping	No
Rear Suspension - Number Rear Shock Absorbers	2
Rear Suspension - Rear Suspension Material	Steel
Rear Suspension - Rear Stabilizer Bar	No
Rear Suspension - Air Adjustable	No

WHEELS & TIRES

Wheels	Standard
Wheels - Wheels Composition	Steel
Wheels - Tube / Tubeless	Tubeless
Wheels - Front Tire Diameter (in)	25
Wheels - Rear Tire Diameter (in)	25
Wheels - Chromed	No
Tires	Standard
Tires - Tire Brand	Dunlop®
Tires - Front Tire Width	8
Tires - Front Wheel Diameter	12
Tires - Rear Tire Width	10
Tires - Rear Wheel Diameter	12
Tires - Front Tire (Full Spec)	Dunlop® AT25 x 8 - 12
Tires - Rear Tire (Full Spec)	Dunlop® AT25 x 10 - 12

BRAKES

Brakes	Standard
Brakes - Front Brake Type	Dual Hydraulic Disc
Brakes - Rear Brake Type	Dual Hydraulic Disc
Engine Braking	Standard

SEATS

Seat	Standard
Seat - Seat Type	One-Piece
Seat - Adjustable	No
Seat - Seat Material	Vinyl
Seat - Seat Location	Driver
Seat - Folding	No
Seat Specifications	Standard
Seat Specifications - Seat Height (in)	35.6
Seat Specifications - Seat Height (mm)	904.2
Seat Specifications - Number Of Seats	1

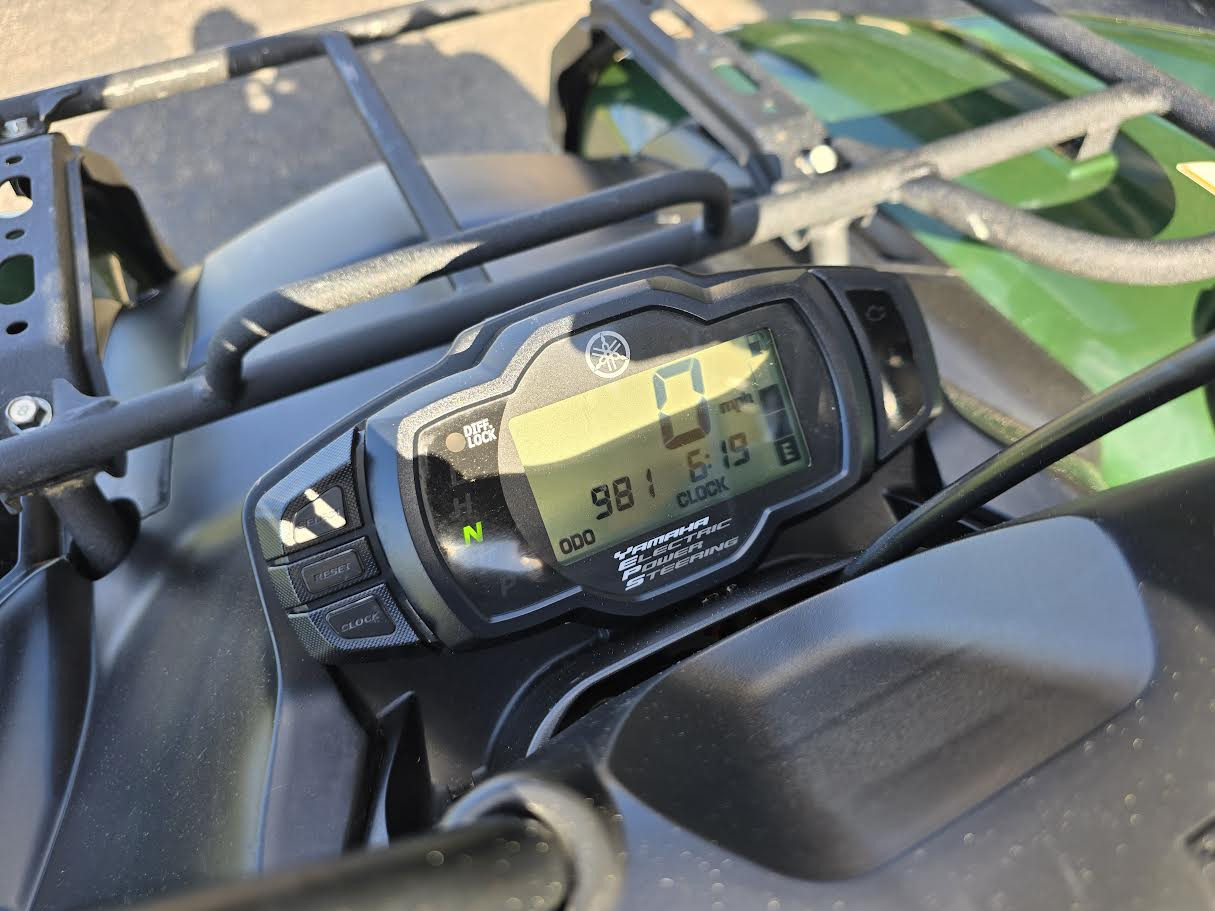

INSTRUMENTATION

Digital Instrumentation	Standard
Clock	Standard
Trip Odometer	Standard
Speedometer	Standard
Hour Meter	Standard
Temperature Warning	Standard
Temperature Warning - Temperature Warning Type	Light
Fuel Level Warning	Standard
Fuel Level Warning - Fuel Level Warning Type	Gauge

STORAGE

Underseat Storage	Standard
Rear Rack	Standard
Rear Rack - Capacity (lbs)	187
Rear Rack - Capacity (kgs)	84.8
Front Rack	Standard
Front Rack - Capacity (lbs)	99
Front Rack - Capacity (kgs)	44.9

LIGHTS

Halogen Headlight(s)	Standard
Headlight(s)	Standard
Headlight(s) - Type	Halogen

PAINT & FINISH

Paint	Standard
Paint - Metallic	No

DRIVE LINE

Driveline	Standard
Driveline - Driveline Brand	On-Command™
Driveline - Driveline Type	Selectable 4X2 / 4X4
Driveline - Number Of Driveline Modes	2
Driveline - Rear Unlocking Differential	No
Driveline - Rear Solid Axle	No
Limited Slip Differential	Standard
Limited Slip Differential - Limited Slip Differential Location	Front
Differential Lock	Standard
Differential Lock - Differential Lock Location	Front

STEERING

Steering	Standard
Steering - Steering Type	Power
Steering - Steering Control	Handlebar

TOWING & HAULING

Rear Hitch	Standard
Tow Hook	Standard

Certain features may require an additional add-on package that may not be included in the retail or sale price. Please contact the dealership for full details.
