Assembled in the USA

The Raptor 700R SE is proudly assembled in the USA.

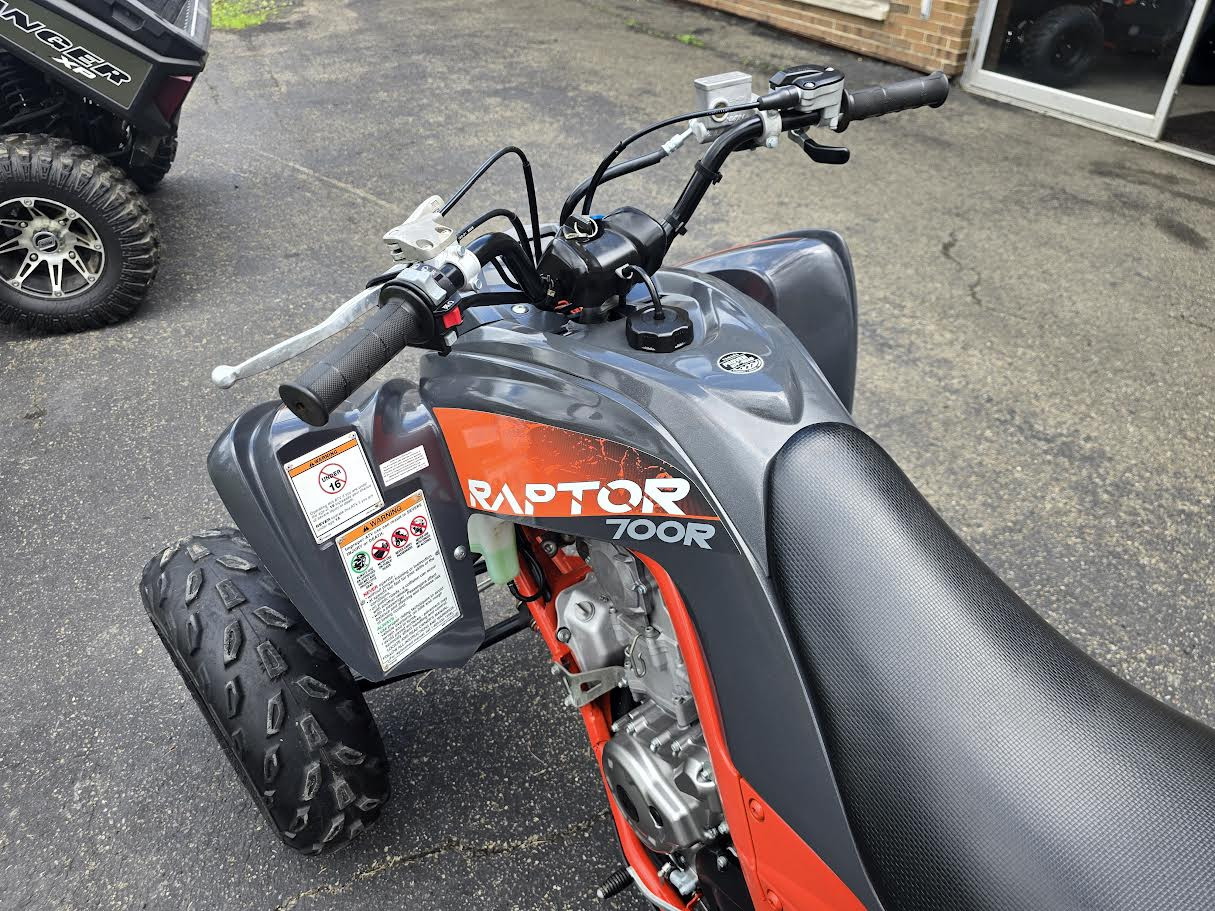

Ergonomic Controls

Thumb throttle lever has a smooth shape for a feel riders will appreciate creating less fatigue at the end of the day while the handlebar-mounted flip-type parking brake lever is simple to use.

High Visibility Lighting

Multi-reflector 30-watt Krypton headlights that are set back in the front cowl add the perfect, no-compromises sporting accent, and an LED taillight provides great visibility.

Large Fuel Tank

Large-capacity, 2.9-gallon fuel tank and Yamaha Fuel Injection (YFI) mean more time on the trail between fill-ups.

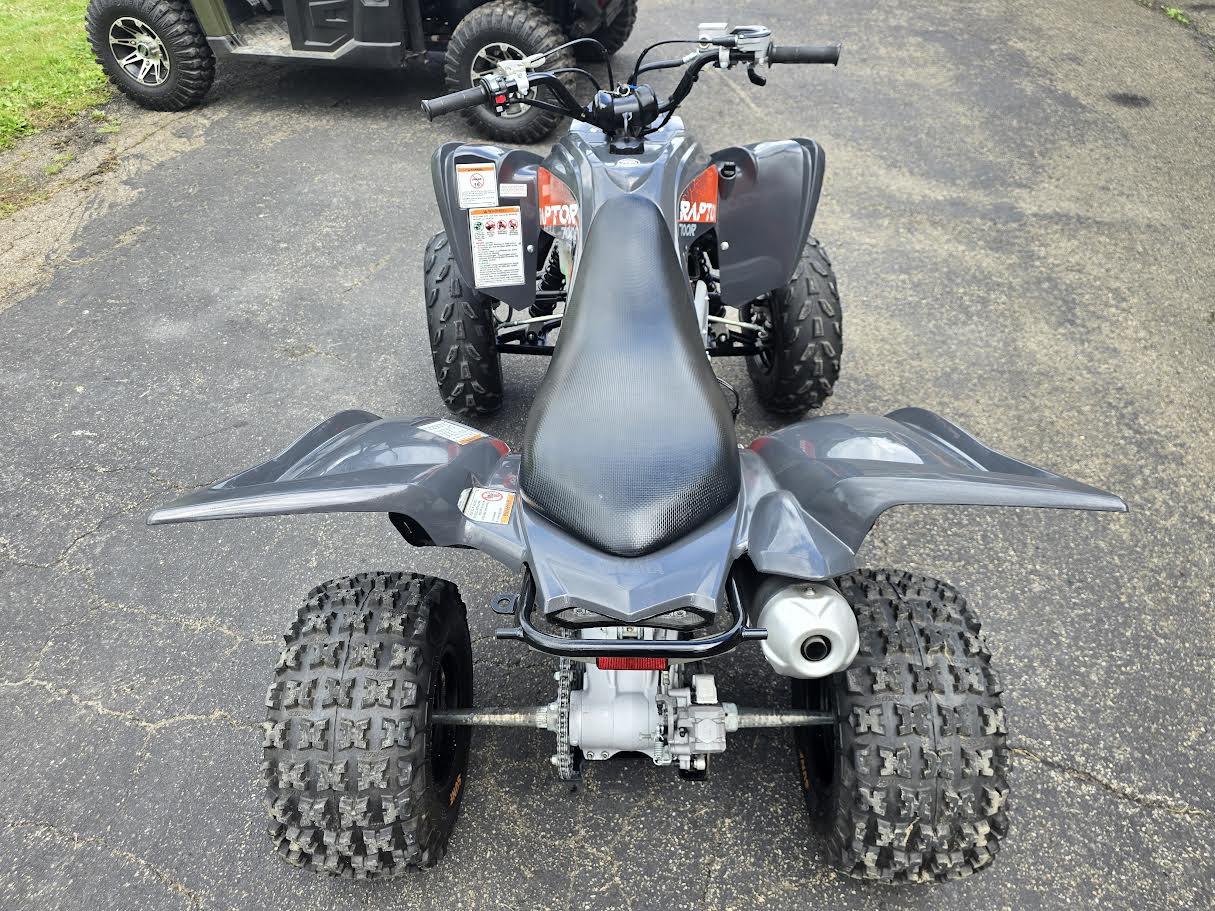

Sporty Ergonomics

The long, YZ-style seat allows maximum rider comfort and movement with superb sport-riding ergonomics.

Yamaha Diagnostic Tool

For improved serviceability, the Raptor 700R SE is Yamaha Diagnostic Tool-ready.

Specification:

ENGINE

• Engine Type - 686cc liquid-cooled SOHC 4-stroke; 4 valves
• Bore x Stroke - 102.0mm x 84.0mm
• Compression Ratio - 10.0:1
• Fuel Delivery - Yamaha Fuel Injection (YFI), 44mm
• Ignition - TCI: Transistor Controlled Ignition
• Transmission - 5-speed w/reverse; wet multiplate clutch
• Final Drive - X-ring chain; 2WD
• Fuel Capacity - 2.9 gal

CHASSIS

• Suspension/Front - Independent double wishbone w/piggyback high/low-speed compression, rebound and threaded preload adjustment, 9.1-in travel
• Suspension/Rear - Cast aluminum swingarm w/piggyback high/low-speed compression, rebound and threaded preload adjustment, 10.1-in travel
• Brakes/Front - Dual hydraulic disc
• Brakes/Rear - Hydraulic disc
• Tires/Front - AT22 x 7-10 Maxxis®
• Tires/Rear - AT20 x 10-9 Maxxis®
